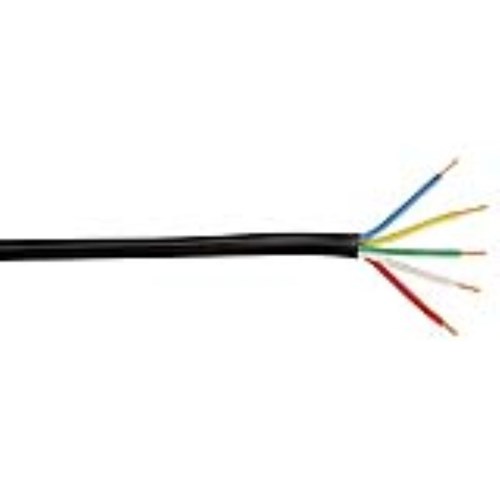

SOLID BC CL2P BAROPLEN

Coleman Cable - CCI

SKU / Product InfoQuantity
55502
Call For Price
18/2
55503
Call For Price
18/3
55504
Call For Price
18/4
55505
Call For Price
18/5
55506
Call For Price
18/6
55508
Call For Price
18/8

Quick Overview

    Features & Application:-
    • Smooth jacket eliminates snagging and tearing
    • PVC Jacket Polypropylene insulation ensures excellent strip ability
    • Thermostats-air-conditioning controls
    • Other low voltage remote control circuits, doorbells, alarm systems
Interested in this item or want more information?

Hours:

Phone: (866) 219-5200

Email: info@squireslumber.com

Can't find what you want? Give us a call and we can help you find it.

Details

Construction Parameters:-

Electrical Properties:-

Part 1
Conductor 18 AWG (1/.040) Solid Copper Clad Steel 0.040
Dielectric Foam Polyethylene 0.180
Shielding 1 & 2 100% Bonded Aluminum/Polyester/Aluminum Tape plus 40% Aluminum Braid 0.216
Shielding 3 & 4 100% Aluminum/Polyester/Aluminum Tape plus 60% Aluminum Braid 0.249
Part 2
Conductor 24 AWG (1/.020) Solid Bare Copper 0.020
Dielectric Polyethylene 0.038
Assembly "Two Insulated conductors are twisted into pairs and four pairs are cabled into a Core core."
Final
Jacket "Part 1 and Part 2 are jacketed in a two legged construction with a web between each leg" 0.290 x 0.575
VALUE*
Impedance (ohms)   75
Capacitance pf/ft   17
Velocity of Propagation (%)   81
Attenuation (Max db/100 ft) 10 MHz 1.85
50 MHz 1.0
100 MHz 1.3
200 MHz 2.05
400 MHz 3.05
700 MHz 5.95
1000 MHz 7.55
1200 MHz 8.9
1450 MHz 10.1
1500 MHz 10.3
2000 MHz 11.3
2500 MHz 12.2
3000 MHz 13.48

Additional Information

Manufacturer: Coleman Cable - CCI
For More Information on the SOLID BC CL2P BAROPLEN, [Click Here] to Link to Manufacturer Web Site
