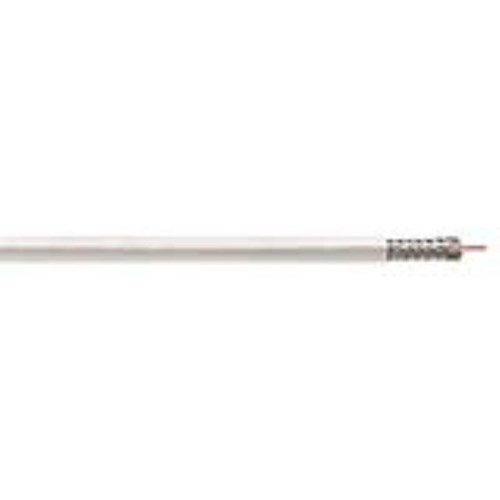

Coleman Cables Rg6 18Bc 60/40 Al Quad Plenum

99911

Coleman Cable - CCI

Call For Price

Quick Overview

    Features & Application:-
    • RG6 Type
    • FEP Dielectric
    • PVC Low Smoke Plenum Jacket
    • 3.0 GHZ
    • CATV
Interested in this item or want more information?

Hours:

Phone: (866) 219-5200

Email: info@squireslumber.com

Can't find what you want? Give us a call and we can help you find it.

Details


Construction Parameters

Electrical Properties:-

Wall (in)* OD (in)*
Conductor 18 AWG (1/.040) Solid Bare Copper - 0.040
Dielectric Foam FEP color natural 0.064 0.169
Shielding 1 & 2 Bonded Aluminum/Polyester/Aluminum Foil with 60% Aluminum Braid - 0.202
Shielding 3 & 4 Aluminum/Polyester/Aluminum Foil with 40% Aluminum Braid 0.234
Jacket Low Smoke PVC 0.017 0.270
VALUE*
Conductor Resistance (ohms/kft) - 6.5
Impedance(ohms) - 75
Capacitance (pF/ft) - 16.5
Velocity of Propagation (%) - 82
Attenuation** (db/100 ft) 30 MHz 1.2
54 MHz 1.5
100 MHz 2
216 MHz 3.2
470 MHz 4.5
600 MHz 5.6
890 MHz 6.6
1000 MHz 7.5
1450 MHz 8.9
2200 MHz 11

Additional Information


Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg6 18Bc 60/40 Al Quad Plenum, [Click Here] to Link to Manufacturer Web Site
