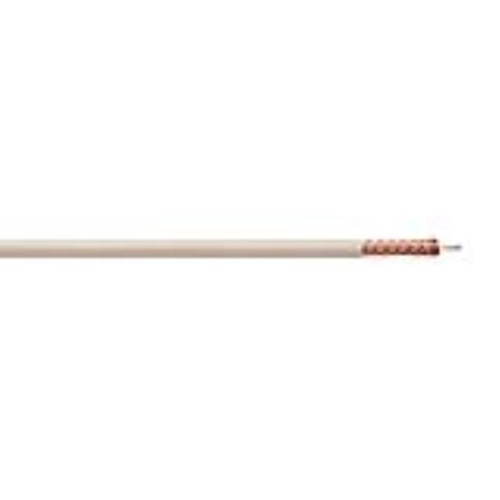

Coleman Cables Rg59 20Bc 95 Bc Plenum

99969

Coleman Cable - CCI

Call For Price

Quick Overview

    Features & Application:-
    • RG59 Type
    • Bare Copper Center Conductor
    • 95% Copper Braid
    • FEP Dielectric
    • PVC Low Smoke Plenum Jacket
    • CCTV
Interested in this item or want more information?

Hours:

Phone: (866) 219-5200

Email: info@squireslumber.com

Can't find what you want? Give us a call and we can help you find it.

Details

Construction Parameters

Electrical Properties:-

Wall (in)* OD (in)*
Conductor 20 AWG (1/.032) Solid Bare Copper - 0.032
Dielectric Foam FEP color natural 0.054 0.140
Shielding 95% Copper Braid - 0.162
Jacket PVC 0.017 0.162
VALUE*
Conductor Resistance (ohms/kft) - 10.1
Impedance(ohms) - 75
Capacitance (pF/ft) - 16.5
Velocity of Propagation (%) - 82
Attenuation** (db/100 ft) 10 MHz 0.8
50 MHz 1.8
100 MHz 2.6
200 MHz 3.8
400 MHz 5.6
900 MHz 8.8
1000 MHz 9.4

Additional Information

Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg59 20Bc 95 Bc Plenum, [Click Here] to Link to Manufacturer Web Site
