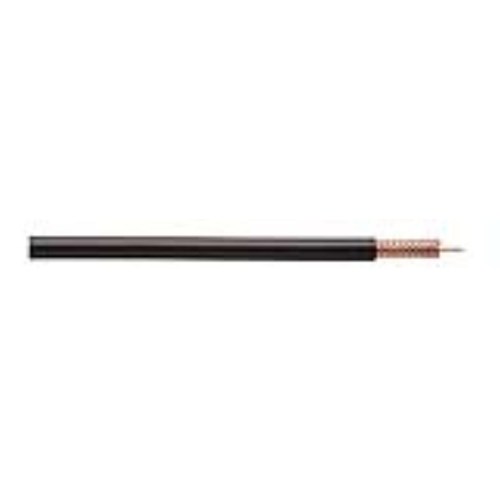

Coleman Cables Rg58 20Bc Pe 80 Bc

991039

Coleman Cable - CCI

Call For Price

Rg58 20Bc Pe 80 Bc

Quick Overview

    Features & Applications:-
  • RG58 Type
  • PE or FPE Dielectric
  • PVC Jacket
  • Interested in this item or want more information?

    Hours:

    Phone: (866) 219-5200

    Email: info@squireslumber.com

    Can't find what you want? Give us a call and we can help you find it.

    Details


    Construction Parameters

    Electrical Properties

    Wall (in)* OD (in)*
    Conductors 20 AWG (1/.032) Solid Bare Copper - 0.032
    Dielectric Solid Polyethylene color natural 0.0420.116
    Shielding 80% Copper Braid - 0.138
    JacketPVC0.0290.195
    VALUE*
    Impedance (ohms) - 53.5
    Capacitance (Max. pF/ft) - 28.5
    Velocity of Propagation (%) - 66
    Conductor Resistance(ohms/kft) - 10.1
    Attenuation (Max. db/100 ft) 50 MHz3.0
    100 MHz4.4
    200 MHz6.0
    400 MHz8.5
    900 MHz13.0

    Additional Information


    Manufacturer: Coleman Cable - CCI
    For More Information on the Coleman Cables Rg58 20Bc Pe 80 Bc , [Click Here] to Link to Manufacturer Web Site
