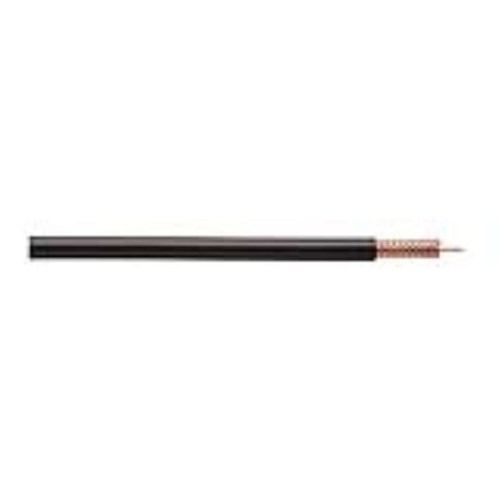

Coleman Cables Rg58 20Tc Pe 95 Tc

991045

Coleman Cable - CCI

Call For Price

Rg58 20Tc Pe 95 Tc

Quick Overview

    Features & Applications:-
  • RG58 Type
  • PE or FPE Dielectric
  • PVC Jacket
  • Interested in this item or want more information?

    Hours:

    Phone: (866) 219-5200

    Email: info@squireslumber.com

    Can't find what you want? Give us a call and we can help you find it.

    Details


    Construction Parameters

    Electrical Properties

    Wall (in)* OD (in)*
    Conductors 20 AWG (19/33) Stranded Tinned Copper - 0.035
    Dielectric Solid Polyethylene color natural 0.0400.114
    Shielding 95% Tinned Copper Braid - 0.136
    JacketPVC0.0300.196
    VALUE*
    Conductor Resistance (ohms/Kft) - 9.5
    Impedance (ohms) - 53 -3
    Capacitance (Max. pF/ft) - 30.8
    Velocity of Propagation (%) - 66
    Attenuation (Max. db/100 ft) 50 MHz3.0
    100 MHz4.9
    200 MHz7.3
    400 MHz11.5
    900 MHz20.0

    Additional Information


    Manufacturer: Coleman Cable - CCI
