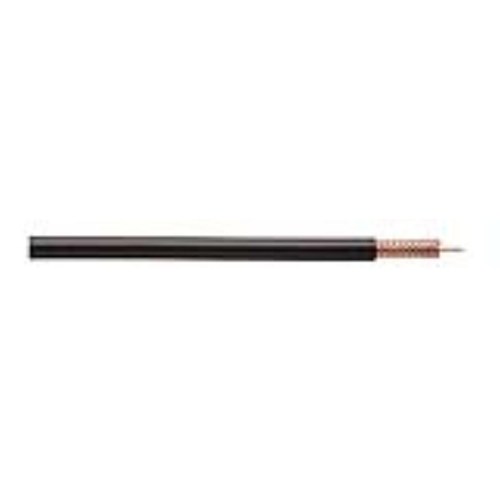

Rg59 22 Str Bc (7/30) 95 Bc
Features & Applications:-
RG59 Type
PE Dielectric
PVC Jacket
Interested in this item or want more information?
Hours:
Phone: (866) 219-5200
Email: info@squireslumber.com
Can't find what you want? Give us a call and we can help you find it.
Details
Construction Parameters
|
| | Wall (in)* | OD (in)* |
| Conductors | 22 AWG (7/30) Bare Copper | - | 0.030 |
| Dielectric | Foam Polyethylene color natural | 0.057 | 0.143 |
| Shielding | 95% Solid Bare Copper Braid | - | 0.171 |
| Jacket | PVC | 0.036 | 0.242 |
Electrical Properties
| VALUE* |
| Conductor Resistance (ohms/kft) | - | 15 |
| Impedance (ohms) | - | 75 |
| Capacitance (Max. pF/ft) | - | 20.5 |
| Velocity of Propagation (%) | - | 66 |
| Attenuation (Max. db/100 ft)
| 50 MHz | 2.4 |
100 MHz | 3.4 |
200 MHz | 4.9 |
400 MHz | 7.0 |
900 MHz | 9.7 |
1000 MHz | 12.0 |
Additional Information
Manufacturer: Coleman Cable - CCI
