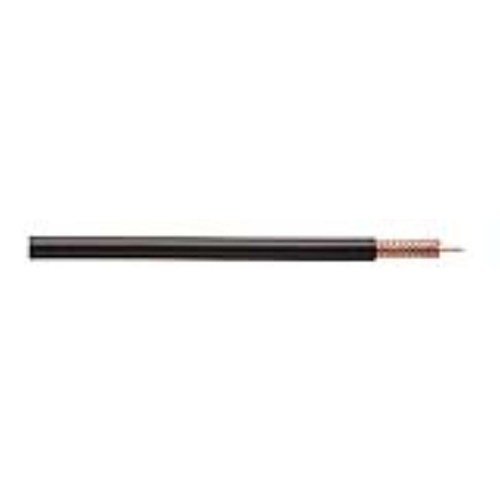

Coleman Cables Rg59 20Bc 95 Bc (W/17Awg Messenger For Aerial) Non-Ul

992874

Coleman Cable - CCI

Call For Price

Rg59 20Bc 95 Bc (W/17Awg Messenger For Aerial) Non-Ul

Quick Overview

    Features & Applications:-
  • RG59 Type
  • PE Dielectric
  • PVC Jacket
  • Interested in this item or want more information?

    Hours:

    Phone: (866) 219-5200

    Email: info@squireslumber.com

    Can't find what you want? Give us a call and we can help you find it.

    Details


    Construction Parameters

    Electrical Properties

    Wall (in)* OD (in)*
    Conductors 20 AWG (1/.032) Solid Bare Copper - 0.032
    Dielectric Foam Polyethylene color natural0.0570.146
    Shielding95% Solid Bare Copper Braid -0.174
    MessengerGalvanized Steel Wire-0.051
    JacketPVC0.0340.242x0.376
    VALUE*
    Impedance (ohms)- 75
    Capacitance (Max. pF/ft) - 17.5
    Velocity of Propagation (%) - 78
    Attenuation (Max. db/100 ft) 50 MHz1.8
    100 MHz2.5
    200 MHz3.4
    400 MHz5.4
    700 MHz6.9
    1000 MHz8.2

    Additional Information


    Manufacturer: Coleman Cable - CCI
    For More Information on the Coleman Cables Rg59 20Bc 95 Bc (W/17Awg Messenger For Aerial) Non-Ul, [Click Here] to Link to Manufacturer Web Site
