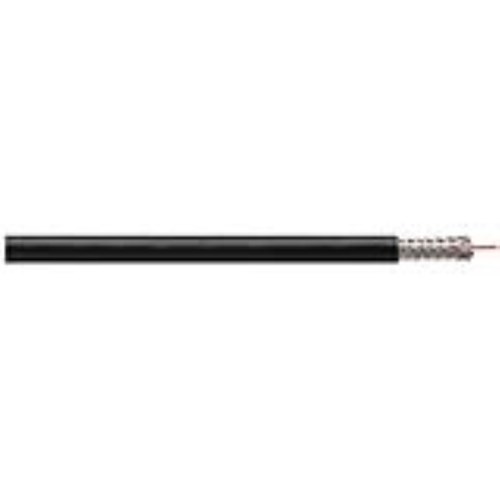

Coleman Cables 75 Ohm 20Bc 2X98 Tc Non-Ul

993201

Coleman Cable - CCI

Call For Price

75 Ohm 20Bc 2X98 Tc Non-Ul

Quick Overview

    Features & Application :-
    • PE Dielectric
    • PVC Jacket
    • Tinned Copper Braid
    • Video
    • CCTV
    • CATV
Interested in this item or want more information?

Hours:

Phone: (866) 219-5200

Email: info@squireslumber.com

Can't find what you want? Give us a call and we can help you find it.

Details


Construction Parameters

Electrical Properties

Wall (in)* OD (in)*
Conductors 20 AWG (1/.032) Solid Bare Copper - 0.032
Dielectric Solid Polyethylene color natural 0.0840.200
1st Shielding 98% Tinned Plated Copper Braid - 0.228
2nd Shielding98% Tinned Plated Copper Braid-0.256
Jacket PVC (Non-Contaminating Vinyl) 0.0240.300
VALUE*
Conductor Resistance (Max./100 ft) - 10.1
Impedance (ohms) - 75
Capacitance (Max. pF/ft) - 21
Velocity of Propagation (%) - 66
Attenuation (Max. db/100 ft) 10 MHz0.8
50 MHz1.5
100 MHz2.7
200 MHz3.7
400 MHz5.3

Additional Information


Manufacturer: Coleman Cable - CCI
