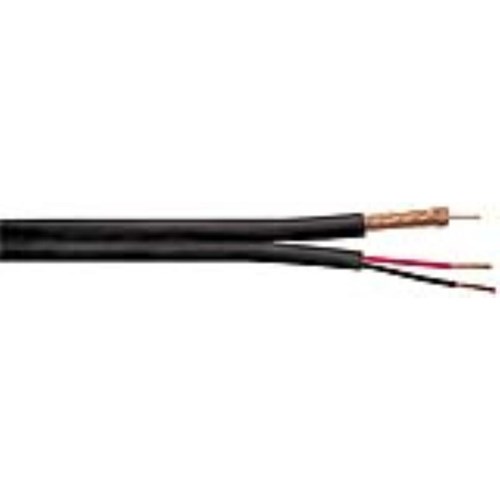

Rg59 22Bc 95 Bc 22/2 Str Tc Oas Siamese
Features & Applications :-
- Bare Copper Center Conductor
- 95% Bare Copper Braid
- PE Dielectric
- CCTV
Interested in this item or want more information?
Hours:
Phone: (866) 219-5200
Email: info@squireslumber.com
Can't find what you want? Give us a call and we can help you find it.
Details
Construction Parameters
|
| 1st part |
| | OD (in)* |
| Conductors | 22 AWG (7/.010) Stranded Bare Copper | 0.030 |
| Dielectric | Foam Polyethylene | 0.146 |
| Shielding | 95% Copper Braid | 0.168 |
| 2nd part |
| Conductor | 22 AWG (7/.010) Tinned Copper | 0.030 |
| Dielectric | PVC | 0.050 |
| Twist | 2 Conductors (1 Black & 1 Red) twisted as Pair | 0.0100 |
| Shielding | 22 AWG (7/30) Tinned Copper Drain wire added and then wrapped over
all using Polyester/ Foil with Aluminum in. | 0.115 |
| Final |
| Jacket | Part 1 and Part 2 Jacketed with PVC utilizing a web | Appx.
0.242 x 0.460 |
Electrical Properties
| Coax | VALUE* |
| Impedance (ohms) | - | 75 |
| Capacitance (pF/ft) | - | 17.3 |
| Velocity of Propagation (%) | - | 78 |
| Attenuation (Max. db/100 ft)
| 50 MHz | 2.1 |
100 MHz | 3.4 |
200 MHz | 4.8 |
400 MHz | 6.9 |
900 MHz | 10.2 |
1000 MHz | 11.0 |
| Capacitance of pair( pf/ft @ 1 khz) | - | 47 |
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg59 22Bc 95 Bc 22/2 Str Tc Oas Siamese,
[Click Here] to Link to Manufacturer Web Site
