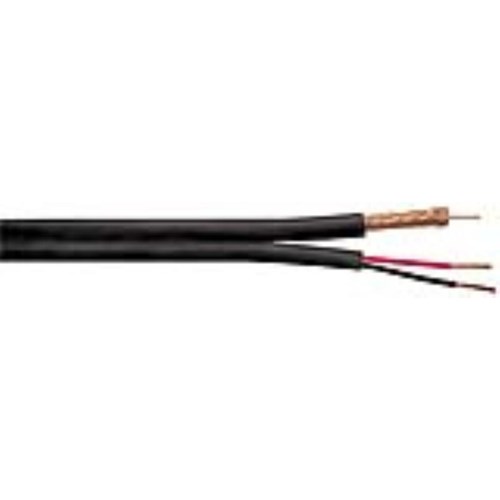

Coleman Cables Rg59 20Bc 95 Bc 18/2 Str Bc Siamese

993253

Coleman Cable - CCI

Call For Price

Rg59 20Bc 95 Bc 18/2 Str Bc Siamese

Quick Overview

    Features & Applications :-
    • Bare Copper Center Conductor
    • 95% Bare Copper Braid
    • PE Dielectric
    • CCTV
Interested in this item or want more information?

Hours:

Phone: (866) 219-5200

Email: info@squireslumber.com

Can't find what you want? Give us a call and we can help you find it.

Details


Construction Parameters

Electrical Properties

1st part
OD (in)*
Conductors 20 AWG (1/.032) Solid Bare Copper0.032
Dielectric Foam Polyethylene color natural 0.146
Shielding 95% Copper Braid0.168
2nd part
Conductor18 AWG (7/.015) Stranded Bare Copper0.046
Dielectric Foam Polypropylene 0.062
Color Code Black & Red
Final
Jacket PVC extruded over Part 1 and Part 2 with web attachedAppx. 0.232 x 0.421
Coax VALUE*
Impedance (ohms)- 75
Capacitance (pF/ft) - 17
Velocity of Propagation (%) - 78
Attenuation (Max. db/100 ft) 50 MHz 1.7
100 MHz 3.6
200 MHz 3.8
400 MHz 4.0
700 MHz 4.0
1000 MHz 4.3

Additional Information


Manufacturer: Coleman Cable - CCI
