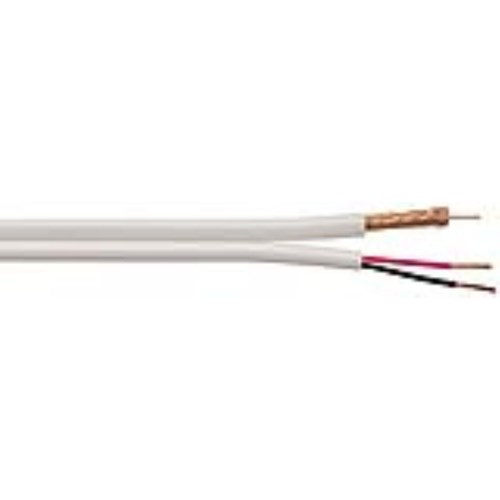

Coleman Cables Rg59 20Bc 95 Bc+18/2 Str Bc Plenum Siamese

993256

Coleman Cable - CCI

Call For Price

Quick Overview

    Features & Application:-
    • Bare Copper Center Conductor
    • 95% Bare Copper Braid
    • FEP Dielectric
    • PVC Low Smoke Plenum Jacket
    • CCTV
Interested in this item or want more information?

Hours:

Phone: (866) 219-5200

Email: info@squireslumber.com

Can't find what you want? Give us a call and we can help you find it.

Details

Construction Parameters

Electrical Properties:-

OD (in)*
Part 1
Conductor 20 AWG (1/.032) Solid Bare Copper 0.032
Dielectric Foam FEP 0.140
Shielding 95% Copper Braid 0.162
Jacket PVC 0.194
Part 2
Conductor 18 AWG (7/26) Stranded Bare Copper 0.045
Dielectric Low Smoke PVC 0.069
Color Code Black & Red 0.138
Final
Jacket Low Smoke PVC extruded over Part 1 and Part 2 with web attached Appx.0.226x0.364
VALUE*
Impedance (ohms) - 75
Capacitance pf/ft - 17.8
Velocity of Propagation (%) - 82
Attenuation (Max db/100 ft) 50 MHz 2.0
100 MHz 2.7
200 MHz 3.7
400 MHz 6.3
1000 MHz 10.1

Additional Information

Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg59 20Bc 95 Bc+18/2 Str Bc Plenum Siamese , [Click Here] to Link to Manufacturer Web Site
