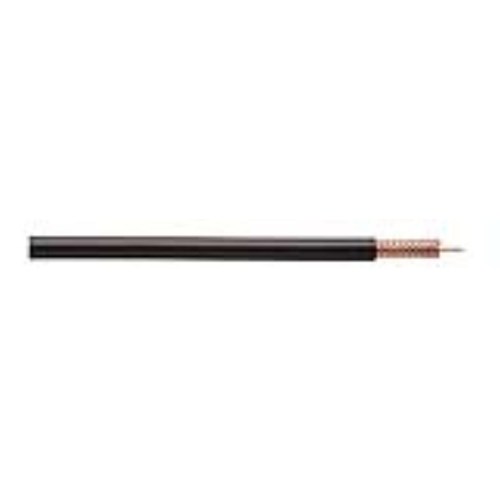

Rg58 20Tc Fpe 95 Tc ( Al Poly Shield)
Features & Applications:-
RG58 Type
PE or FPE Dielectric
PVC Jacket
Interested in this item or want more information?
Hours:
Phone: (866) 219-5200
Email: info@squireslumber.com
Can't find what you want? Give us a call and we can help you find it.
Details
Construction Parameters
|
| | Wall (in)* | OD (in)* |
| Conductors | 20 AWG (19/.008) Tinned Coated Copper | - | 0.035 |
| Dielectric | Foam Polyethylene color natural | 0.034 | 0.103 |
| Shielding | Fusible Aluminum/Polyester/Aluminum Tape plus 95% Tinned Coated Copper Braid | - | 0.129 |
| Jacket | PVC | 0.027 | 0.183 |
Electrical Properties
| VALUE* |
| Conductor Resistance (ohms/mft) | - | 9.5 |
| Impedance (ohms) | - | 50 |
| Capacitance (Max. pF/ft) | - | 25.4 |
| Velocity of Propagation (%) | - | 78 |
| Attenuation (Max. db/100 ft)
| 10 MHz | 1.4 |
50 MHz | 2.9 |
100 MHz | 4.3 |
200 MHz | 6.2 |
400 MHz | 8.8 |
700 MHz | 12.0 |
1000 MHz | 14.7 |
2000 MHz | 22.0 |
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables Rg58 20Tc Fpe 95 Tc ( Al Poly Shield),
