Type 304 Stainless Steel Power-Stud

Power-Stud    Wedge Expansion Anchor
Mechanically Galvanized and Stainless Steel Versions

Product Description :

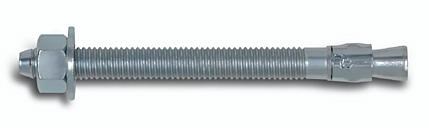

The Power-Stud anchor, is a fully threaded, torque-controlled, wedge expansion anchor. It is available in a threaded version suitable for applications in solid concrete and grout-filled concrete masonry. The threaded version is produced in mechanically galvanized carbon steel and stainless steel to offer various levels of corrosion resistance depending on use.

General Applications and Uses :

Lighting Standards and Base Plates

Sills and Support Ledgers

Retrofit Projects and Machinery Anchorage

Food and Beverage Facilities

Water Treatment Plants and Marine Applications

Features and Benefits :
+ Fully threaded, medium duty all-purpose anchor
+ Length ID stamped on each threaded anchor
+ Anchors can be installed through the fixture for hole spotting not required
+ Chamfered impact section prevents damage to threads
+ Clip design prevents spinning during installation
+Nominal drill bit diameter same as anchor diameter

Approvals and Listings :

Tested in accordance with ASTM E488 and AC01 criteria
FM Global (Factory Mutual) – File No. J.I. OK3A9.AH (see ordering information)
Underwriters Laboratory (UL Listed) – File No. EX1289 (see ordering information)
Federal GSA Specification
Meets the descriptive and proof load requirements of CID A-A-1923A, Type 4

Guide Specifications :

CSI Divisions: 03151-Concrete Anchoring, 04081-Masonry Anchorage and 05090-Metal Fastenings. Expansion anchors shall be Power-Stud as supplied by Powers Fasteners, Inc., Brewster, NY.

Ordering Information :

Mechanically Galvanized Carbon Steel Power-Stud :

Cat. No.	Anchor Size	Min. Embed.	Thread Length	Std. Box	Std. Carton	Wt./100	FM or UL
7720	1/2" x 2 3/4"	2 1/4"	1 3/8"	50	200	18	UL
7723	1/2" x 4 1/2"	2 1/4"	3 1/8"	50	200	30	FM/UL
7724	1/2" x 5 1/2"	2 1/4"	4 1/8"	50	150	34	FM/UL
7726	1/2" x 7"	2 1/4"	5 5/8"	25	100	34	UL
7730	5/8" x 3 1/2"	2 3/4"	2"	25	100	40	UL
7734	5/8" x 6"	2 3/4"	4 1/2"	25	75	64	FM/UL
7741	3/4" x 4 3/4"	3 3/8"	2 7/8"	20	60	76	UL
7742	3/4" x 5 1/2"	3 3/8"	3 5/8"	20	60	85	FM/UL
7748	3/4" x 8 1/2"	3 3/8"	6 5/8"	10	40	120	FM/UL
7750	7/8" x 6"	3 7/8"	2 3/4"	10	40	120	FM/UL
7752	7/8" x 8"	3 7/8"	4 3/4"	10	40	160	FM/UL
7763	1" x 9"	4 1/2"	5 3/8"	10	30	240	FM

Type 304 Stainless Steel Power-Stud :

Cat. No.	Anchor Size	Min. Embed.	Thread Length	Std. Box	Std. Carton	Wt./100	FM or UL
7300	1/4" x 1 3/4"	1 1/8"	3/4"	100	500	3	-
7302	1/4" x 2 1/4"	1 1/8"	1 1/4"	100	500	3 1/2	-
7304	1/4" x 3 1/4"	1 1/8"	2 1/4"	100	500	4 3/4	-
7310	3/8" x 2 1/4"	1 5/8"	1 1/4"	50	250	8 3/4	FM/UL
7312	3/8" x 2 3/4"	1 5/8"	1 5/8"	50	250	9 1/2	FM/UL
7313	3/8" x 3"	1 5/8"	1 7/8"	50	250	10 3/4	UL
7314	3/8" x 3 1/2"	1 5/8"	2 3/8"	50	250	12	FM/UL
7315	3/8" x 3 3/4"	1 5/8"	2 5/8"	50	250	12 3/4	UL
7316	3/8" x 5"	1 5/8"	3 1/8"	50	250	15 1/2	UL
7320	1/2" x 2 3/4"	2 1/4"	1 3/8"	50	200	18	FM/UL
7322	1/2" x 3 3/4"	2 1/4"	2 3/8"	50	200	23	FM/UL
7323	1/2" x 4 1/2"	2 1/4"	3 1/8"	50	200	30	UL
7324	1/2" x 5 1/2"	2 1/4"	4 1/8"	50	150	34	FM/UL
7326	1/2" x 7"	2 1/4"	5 5/8"	25	100	44	FM/UL
7330	5/8" x 3 1/2"	2 3/4"	2"	25	100	40	FM/UL
7332	5/8" x 4 1/2"	2 3/4"	3"	25	100	54	FM/UL
7333	5/8" x 5"	2 3/4"	3 1/2"	25	100	57	UL
7334	5/8" x 6"	2 3/4"	4 1/2"	25	75	64	FM/UL
7336	5/8" x 7"	2 3/4"	5 1/2"	25	75	72	UL
7338	5/8" x 8 1/2"	2 3/4"	7"	25	75	84	UL
7340	3/4" x 4 1/4"	3 3/8"	2 3/8"	20	60	70	UL
7341	3/4" x 4 3/4"	3 3/8"	2 7/8"	20	60	76	UL
7342	3/4" x 5 1/2"	3 3/8"	3 5/8"	20	60	85	FM/UL
7344	3/4" x 6 1/4"	3 3/8"	4 3/8"	20	60	95	UL
7346	3/4" x 7"	3 3/8"	5 1/8"	20	60	105	UL
7348	3/4" x 8 1/2"	3 3/8"	6 5/8"	10	40	120	UL
7349	3/4" x 10"	3 3/8"	8 1/8"	10	30	135	UL
7352	7/8" x 8"	3 7/8"	4 3/4"	10	40	160	UL
7361	1" x 6"	4 1/2"	2 3/8"	10	30	170	-
7363	1" x 9"	4 1/2"	5 3/8"	10	30	240	-
7365	1" x 12"	4 1/2"	8 3/8"	5	15	300	-

Type 316 Stainless Steel Power-Stud :

Cat. No.	Anchor Size	Min. Embed.	Thread Length	Std. Box	Std. Carton	Wt./100	FM or UL
7600	1/4" x 1 3/4"	1 1/8"	3/4"	100	500	3 1/4	-
7602	1/4" x 2 1/4"	1 1/8"	1 1/4"	100	500	3 3/4	-
7604	1/4" x 3 1/4"	1 1/8"	2 1/4"	100	500	5 1/4	-
7610	3/8" x 2 1/4"	1 5/8"	1 1/4"	50	250	8 3/4	-
7612	3/8" x 2 3/4"	1 5/8"	1 5/8"	50	250	10 1/2	FM/UL
7613	3/8" x 3"	1 5/8"	1 7/8"	50	250	11	FM/UL
7614	3/8" x 3 1/2"	1 5/8"	2 3/8"	50	250	12	UL
7615	3/8" x 3 3/4"	1 5/8"	2 5/8"	50	250	13	FM/UL
7616	3/8" x 5"	1 5/8"	3 1/8"	50	250	17 1/4	UL
7620	1/2" x 2 3/4"	2 1/4"	1 3/8"	50	200	18	FM/UL
7622	1/2" x 3 3/4"	2 1/4"	2 3/8"	50	200	24	FM/UL
7623	1/2" x 4 1/2"	2 1/4"	3 1/8"	50	200	30	FM/UL
7624	1/2" x 5 1/2"	2 1/4"	4 1/8"	50	150	34	UL
7626	1/2" x 7"	2 1/4"	5 5/8"	25	100	44	FM/UL
7630	5/8" x 3 1/2"	2 3/4"	2"	25	100	40	FM/UL
7632	5/8" x 4 1/2"	2 3/4"	3"	25	100	54	FM/UL
7633	5/8" x 5"	2 3/4"	3 1/2"	25	100	57	UL
7634	5/8" x 6"	2 3/4"	4 1/2"	25	75	64	FM/UL
7636	5/8" x 7"	2 3/4"	5 1/2"	25	75	72	FM/UL
7638	5/8" x 8 1/2"	2 3/4"	7"	25	75	84	UL
7640	3/4" x 4 1/4"	3 3/8"	2 3/8"	20	60	70	UL
7641	3/4" x 4 3/4"	3 3/8"	2 7/8"	20	60	76	UL
7642	3/4" x 5 1/2"	3 3/8"	3 5/8"	20	60	85	FM/UL
7644	3/4" x 6 1/4"	3 3/8"	4 3/8"	20	60	95	UL
7646	3/4" x 7"	3 3/8"	5 1/8"	20	60	105	UL
7648	3/4" x 8 1/2"	3 3/8"	6 5/8"	10	40	120	UL

View Product Specification

Carbon Steel Version


Mechanically Galvanized and Stanless Steel Versions

View Product Profiles

Smith Performing Arts Center, Las Vegas, NV

Manufacturer: Anchors Powers DeWalt

For More Information on the Type 304 Stainless Steel Power-Stud, [Click Here] to Link to Manufacturer Web Site
